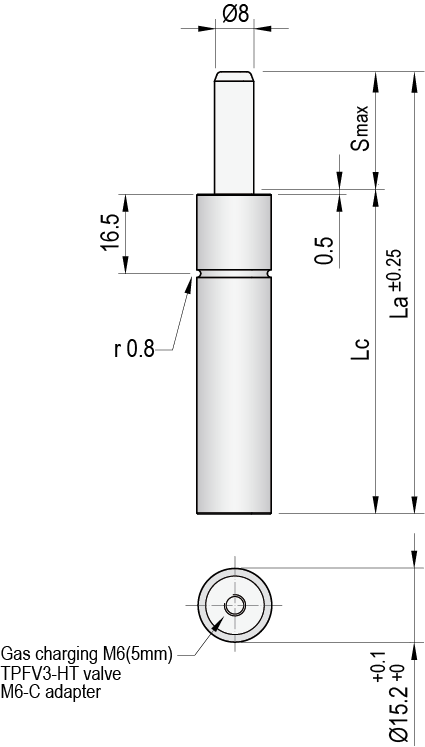

TPHT 15

TPHT 15

Technical Specfications

  • Pressure mediumGas Nitrógeno (N2)
  • Max. charging pressure80 Bar
  • Min. charging pressure20 Bar
  • Seal Area0,50 cm2
  • Max. working temperature120ºC
  • Force increase by temperature0,33 %/ºC
  • Max. stem speed0,5 m/s
  • Maintenance kitkit HT15
ModelS max
mm
La
mm
Lc
mm
Fuerza inicialFa
daN
Fuerza finalFc
daN
PresiónP
Bar
CAD
TPHT 15x77564940 (±5%)5580 (20°C)CAD
TPHT 15x1010625260CAD
TPHT 15x1313685560CAD
TPHT 15x1515725760CAD
TPHT 15x1919806165CAD
TPHT 15x2525926765CAD
TPHT 15x38381188065CAD
TPHT 15x50501429270CAD
TPHT 15x636317210970CAD
TPHT 15x757519512070CAD
