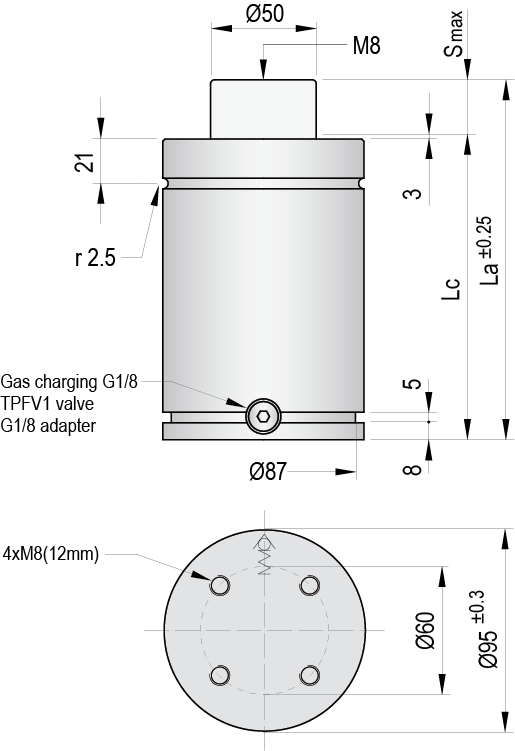

TPSRC 3000

TPSRC 3000


Technical Specfications

  • Pressure mediumGas Nitrógeno (N2)
  • Max. charging pressure150 Bar
  • Min. charging pressure35 Bar
  • Área de trabajo (vástago)19,63 cm2
  • Max. working temperature80ºC
  • Force increase by temperature0,33 %/ºC
  • Max. stem speed20 m/min
ModelS max
Fuerza inicialFa
Fuerza al 90%F
 TPSRC 3000x160 1604402803000 (±5%)4410150 (20°C)CAD
 TPSRC 3000x200  2005203204270CAD
 TPSRC 3000x250 2506203704320CAD
 TPSRC 3000x3003007204204350CAD
